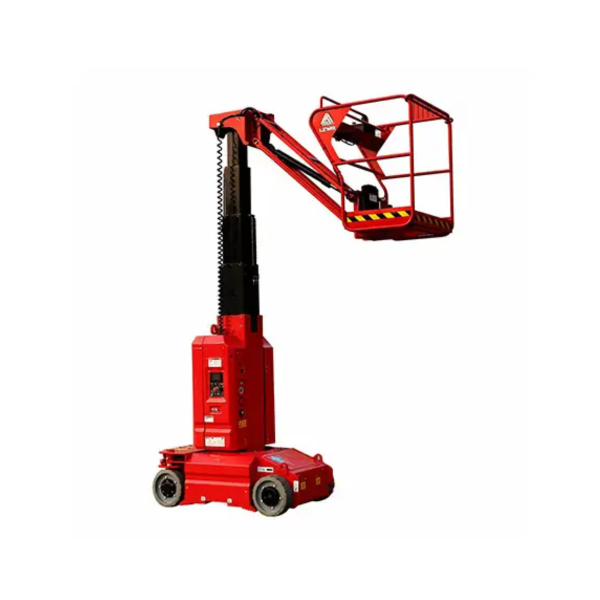

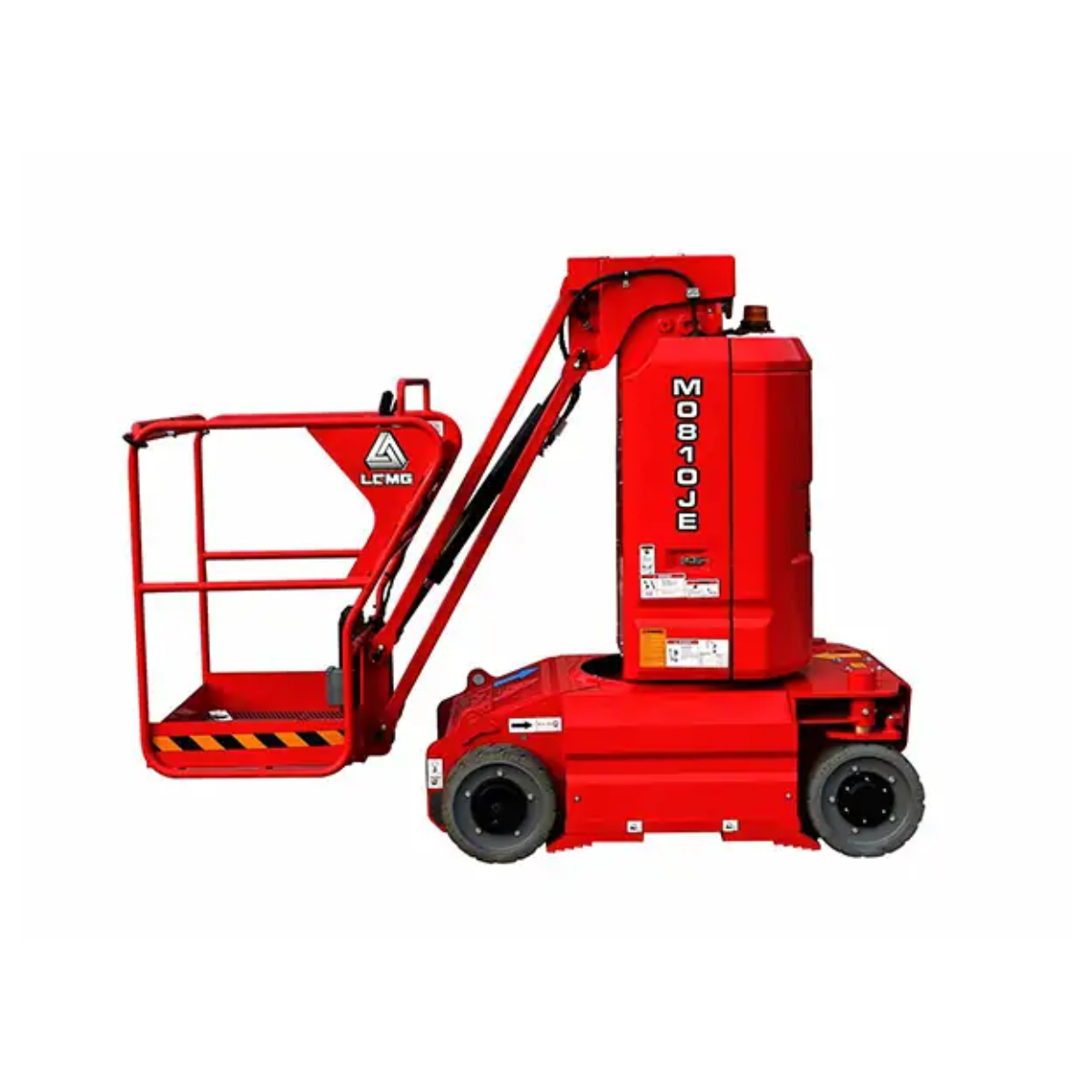

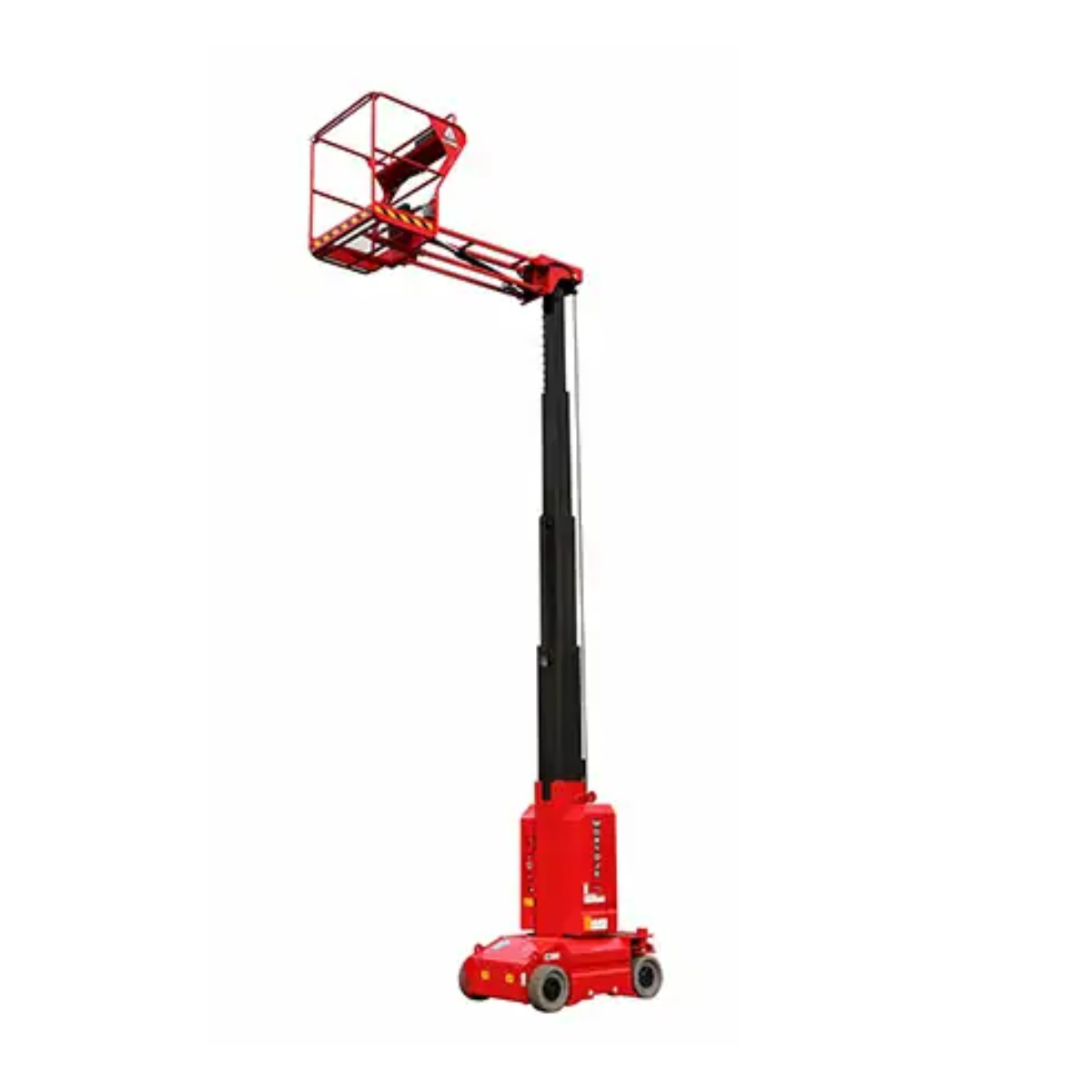

LGMG Vertical Mast Lift (10m WH)

  Average customer rating   View all reviews

LGMG | M0810JE

The LGMG Vertical Mast Lift has a 10m Working Height and is highyl maneuverable in tight spaces. With an additional 3.2m horizontal outreach and an electric drive function, the M0810JE is a highly efficient machine that keeps site producitivity at a max.

Additional zero-tail swing feature, small footprint and 200kg platform capacity increases site efficiency and keeps projects moving with ease.

Key Features

  • Lightweight Design
  • Small Footprint
  • Ideal ‘up and over’ capability with a 3.2m Horizontal Outreach
  • Exo-Friendly with Zero-Emissions
  • 10M Operator Working Height

10274 LGMG Vertical Mast Lift (10m WH)

Max. Working Height 10m
Platform Height (Raised) 8m
Horizontal Outreach 3.2m
Up and Over Clearance Max. 6.6m
Platform Size (LxW) 0.98 x 0.72m
Overall Dimensions (L x W x H stowed) 2.6m x 1m x 1.99x
Platform Capacity 200kg
Max. Drive Speed (Stowed/Raised) 5km/h    /    0.43km/h
Gradability 25%
Power Source 24V, 250Ah
Weight 2720kg

DOWNLOAD THE FULL SPECIFICATION HERE
