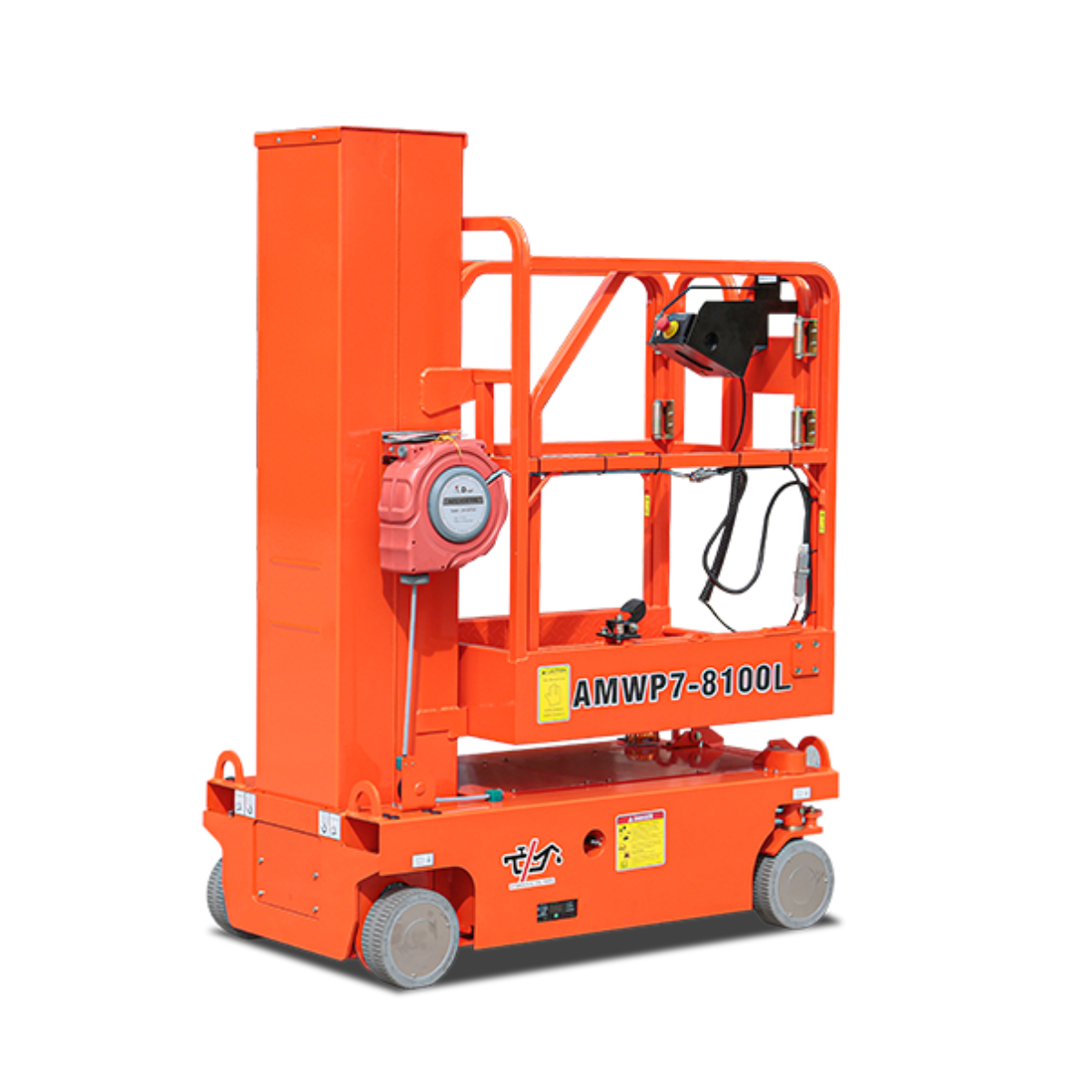

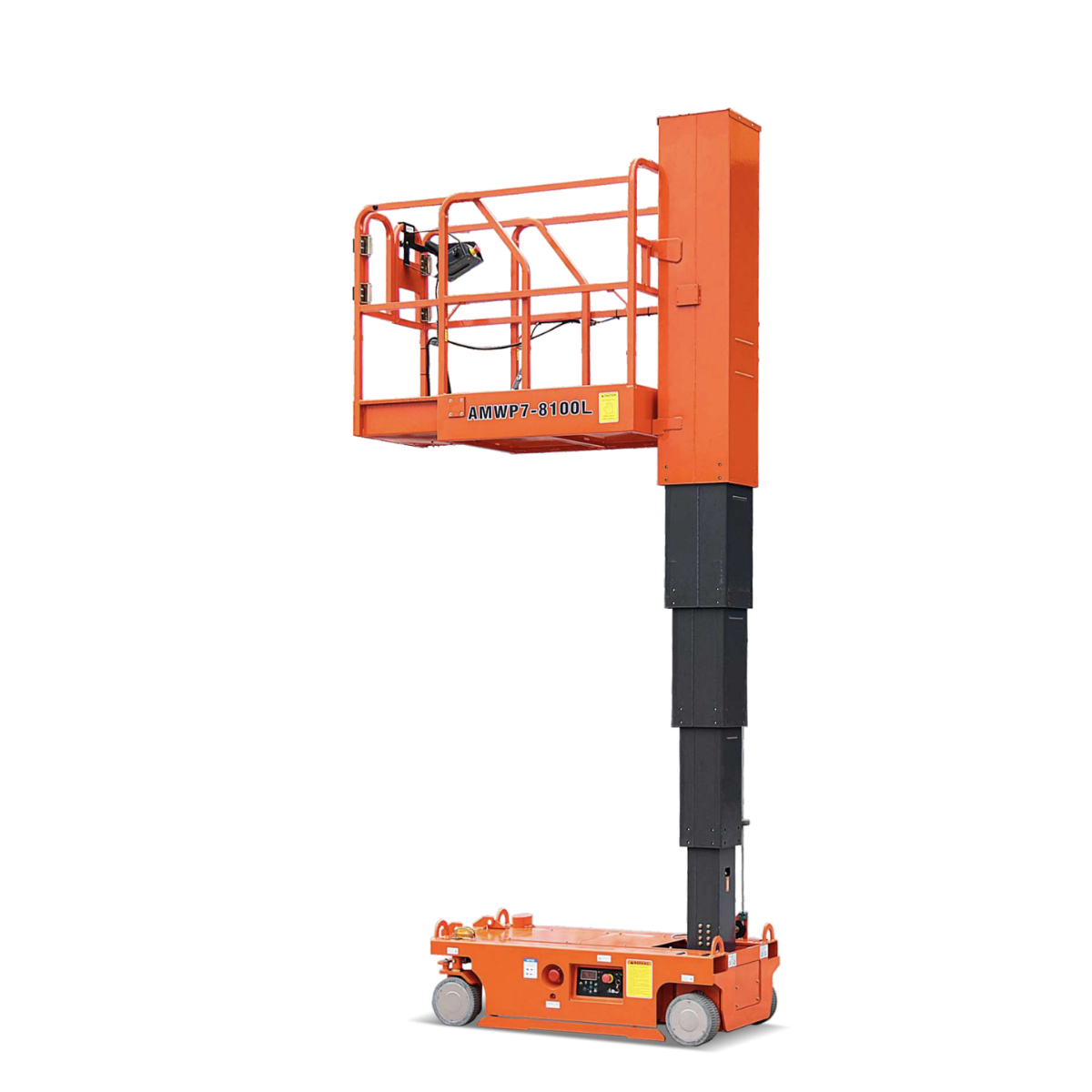

Dingli | AMWP7-8100L
The Dingli Vertical Lift Mast provides a working height of 6.7m and is fitted with an electric push rod, designed to replace traditional ‘hydraulic cylinders’. Allowing them to be ‘oil free’ and more energy efficient and more environmentally focussed.
Equipped with a brushless DC motor making the Dingli Vertical Lift Mast maintenance, noise, and emission free.
10003 Dingli Vertical Lift Mast (6.7m WH)
| Max. Working Height | 6.7m (22ft) |
| Length | 1.45m (4ft 9″) |
| Width | 1.76m (2ft 6″) |
| Height | 1.99m (6ft 6″) |
| Weight | 990kg (2,182lb) |
| Clearance (Stowed / Raised) | 2″ / 1″ |
| Safe Working Load | 200kg (440lb) |
| Safe Working Load (On Extension) | 113kg (249lb) |
| Platform Extension Size | 0.5m (1ft 8″) |
| Up/ Down Speed | 28seconds both ways |
| Max Working Slope | 1.5°/3° |
